Pre-Insulated Terminals
Art.-No. 911-00721 | T3FB10-YE |

Copied

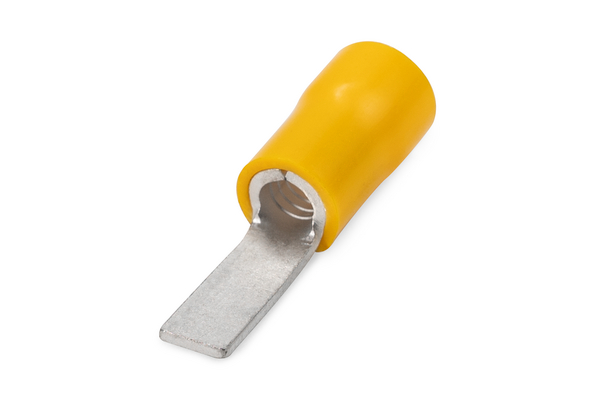

Flat blade single grip terminal, 3FB series.

    • Inner copper tube (Twingrip)
    Colour Yellow (YE)
    Description TERMINAL T-G BLADE YELLOW 2.8mm
    PART DESCRIPTION T3FB10-YE
    Pack Cont. 100pcs.
    Part No. T3FB10
    Product Family Insulated Blade Terminals
    Product Group Pre-Insulated Terminals
    Type T3FB10
    Length (L) 23.0mm
    Length (L2) 10.0mm
    Width (W) 2.8mm
    Wire Size Range (mm²) 2.5-6.0mm²
    GTIN-13 / EAN 6005242017650
    Art.-No.: 911-00721 Details Contact
