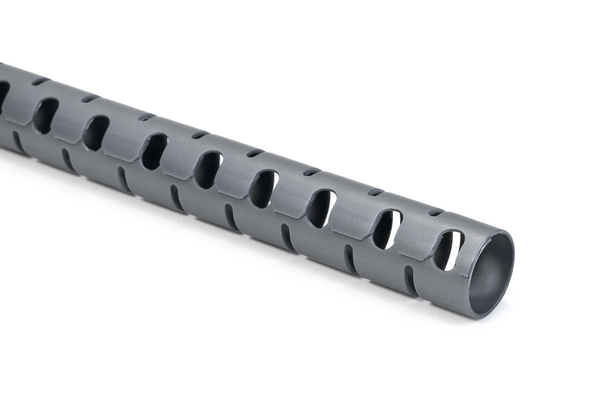

Helawrap cable cover
Art.-No. 161-64410 | HWPP25-PP-SR |  Details

HelaWrap Cable Cover - HWPP - silver.

    This product is not available anymore.
    • Ideal solution for bundling, protecting and fixing cables
    • Quick and effortless to apply
    • Good abrasion protection
    • Special profile enables branching off cable at any point
    • Can be removed and reapplied often
    • Available in several colours and sizes
    • Handy HAT applicator tool included
    Show more
    Downloads Datasheet
    Application Helawrap is used to bundle and protect cables and wires in the electrical industry, panel building, machine building and many other industrial applications. Helawrap is the time-saving solution for industrial applications.
    Colour Silver (SR)
    Material Polypropylene (PP)
    PART DESCRIPTION HWPP25-PP-SR
    Pack Cont. 500m
    Package Content packed in box
    Part No. HWP25S
    Product Family HWPP in polypropylene
    Product Group Helawrap cable cover
    Type HWPP25
    Variant Spiral Binding
    Bundle Diameter max (metric) 27mm
    Bundle ∅ min. 23mm
    Diameter (D) 24.0mm
    Nominal ∅ 1"
    Nominal ∅ 25mm
    Pitch (P) 20mm
    Wall (WT) 0.041"
    Wall (WT) 1.05mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Intermittent Operating Temperature +140°C
    Melting Point +284 °F (+140 °C)
    Operating Temperature -60 °C to +110 °C, intermittent +140 °C
    ROHS compliant Yes
    Specifications
    Specifications ECE R-118-03 Abschnitt 6 / Annex 6
    GTIN-13 / EAN 5022660649813
    Packaging 1 - Qty 50
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 3.834kg
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.828m
    Packaging 3 - Length (m) 1.194m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.7889m³
    Packaging 3 - Weight (kg) 9.0kg
    Packaging 3 - Width (m) 0.798m
    Packaging 4 - Height (m) 0.96m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 500
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.922m³
    Packaging 4 - Weight (kg) 30.0kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39131604
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
