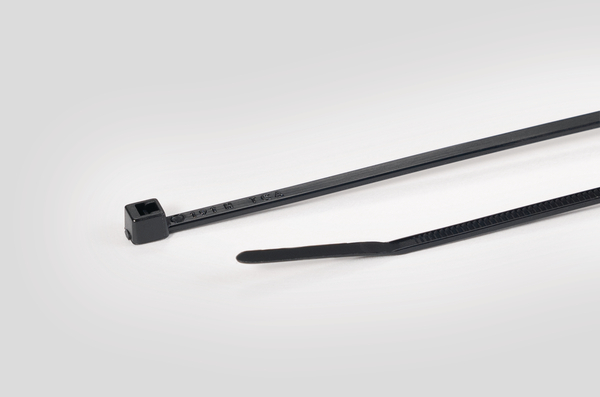

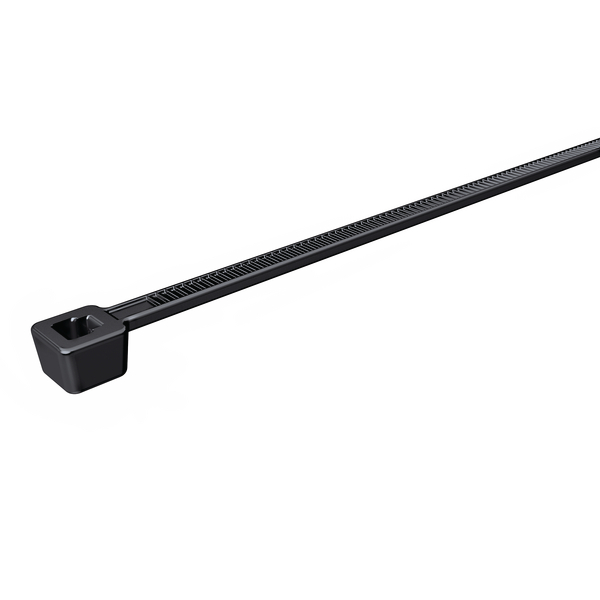

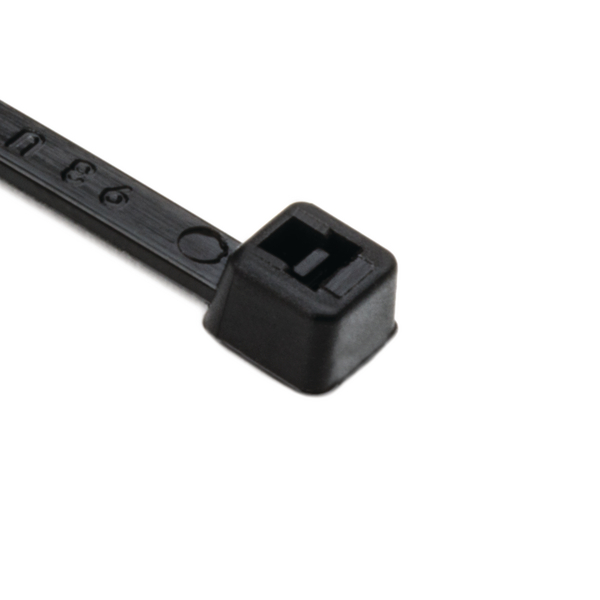

Cable tie inside serrated, 101.6x2.5mm, ∅1.5-22.0mm, black, 500pcs.
Art.-No. 111-02180 | T18R-PA66HS-BK |  Details

The Allrounder: T-Series cable ties can be used for almost any type of application.

    • Heat stabilised cable ties (PA66HS) for temperatures up to +105 °C
    • Available in a wide range of sizes to cover almost every application
    • Inside serration provides a strong hold onto bundles
    • Manual and/or pneumatic tools available for greater process reliability
    • Commonly offered in natural and black, other colours available on request
    Show more
    Downloads Datasheet e-Learning
    Application These inside serrated cable ties are made from heat stabilised Polyamide 6.6 (PA66HS). They can be applied in environments with continuous temperatures up to +105 °C. T-Series cable ties can be easily installed by hand or using an application tool to ensure consistency of installation.
    Colour Black (BK)
    Description 111-01950 CABLE TIES INSULOK BLACK 100 x 2.5mm H/S
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T18R-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Part No. T18RHSBK
    Product Group Cable ties for temperatures up to + 105°C (heat stabilised)
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18R
    Variant Inside Serrated
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 4.8mm
    Cable Tie Head Width (metric) 4.45mm
    Height (H) 3.7mm
    Length (L) 101.6mm
    Min.Tensile Strength 80N
    Strap Width max. (G) 0.18"
    Thickness (T) 1.0mm
    Width (W) 2.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 6005242006272
    UNSPSC Key 39121703
