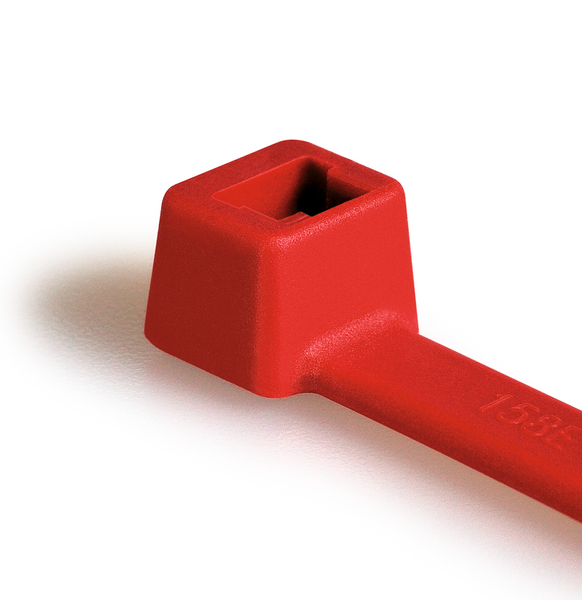

Cable tie inside serrated, 390.0x4.6mm, ∅1.5-110mm, red, 100pcs.
Art.-No. 111-02173 | T50L-PA66-RD |  Details

T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles.

    • Available in a wide range of materials and sizes
    • High tensile strength with very low insertion force
    • Only high quality plastic is used meeting recycling targets
    • Inside serrated cable ties for a strong hold onto bundles
    • Ergonomic bent tail offers quick and simple installation
    • Easy application either manually or with an application tool
    Show more
    Downloads Datasheet e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Colour Red (RD)
    Description CABLE TIES INSULOK 392 x 4.7mm RED
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50L-PA66-RD
    Pack Cont. 100pcs.
    Package Content packed in bag
    Part No. T50LRD
    Product Group Cable Ties Polyamide 6.6 standard
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50L
    Variant Inside Serrated
    Bundle Diameter max (metric) 110mm
    Bundle ∅ min. 1.5mm
    Cable Tie Head Length (metric) 7.2mm
    Cable Tie Head Width (metric) 8.1mm
    Length (L) 390.0mm
    Min.Tensile Strength 225N
    Strap Width max. (G) 0.32"
    Thickness (T) 1.4mm
    Width (W) 4.6mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 6005242037764
    UNSPSC Key 39121703
