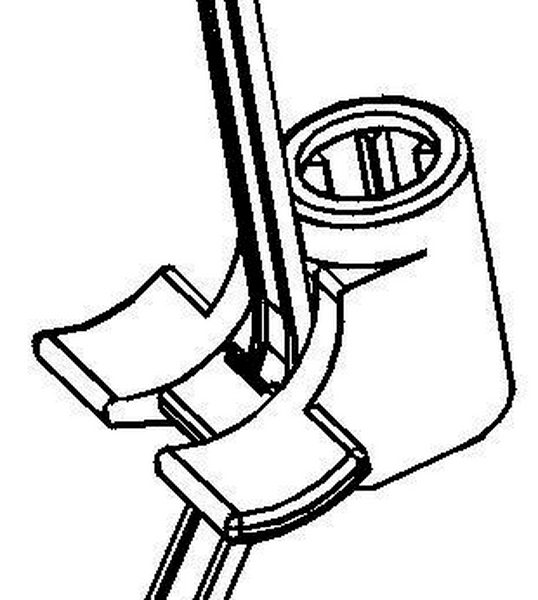

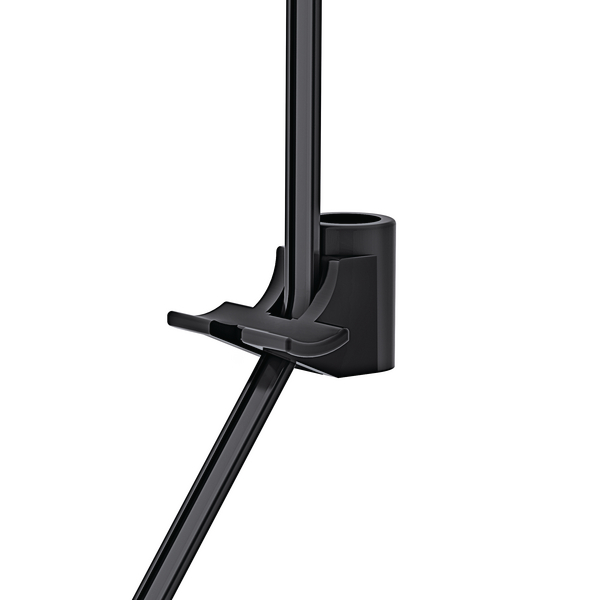

Fixing tie for stud, inside serrated, ∅2.0-45.0mm, black, 500pcs.
Art.-No. 150-21291 | T50RSBS5-PA66HS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Downloads CAD-Download Datasheet

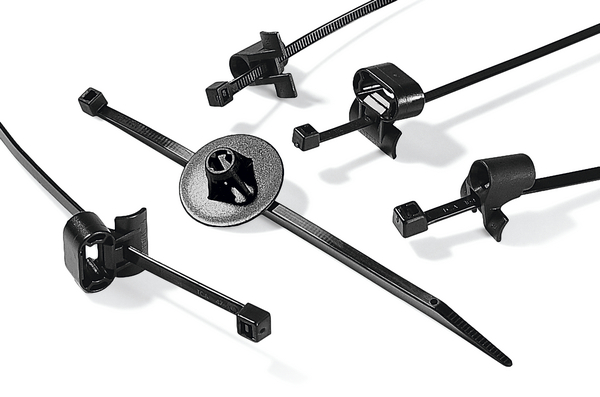

    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50RSBS5-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in pcs.
    Part No. T50RSBS5
    Product Family SBS5 Series
    Product Group 2-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSBS5
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 15mm

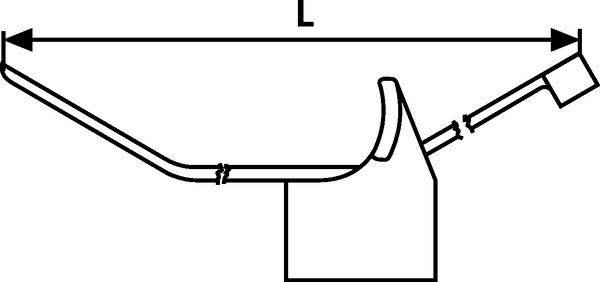

    Length (L) 200mm
    Length (L2) 20.0mm
    Min Stud Length 14.2mm
    Min.Tensile Strength 225N
    Stud ∅ 5.0 mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 20.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026119755
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.385m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01328m³
    Packaging 1 - Weight (kg) 1.300001kg
    Packaging 1 - Width (m) 0.345m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 5.950004kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.195m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.147m³
    Packaging 4 - Weight (kg) 140.0kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
