23/12/2024
For new projects please use part number 156-03040!

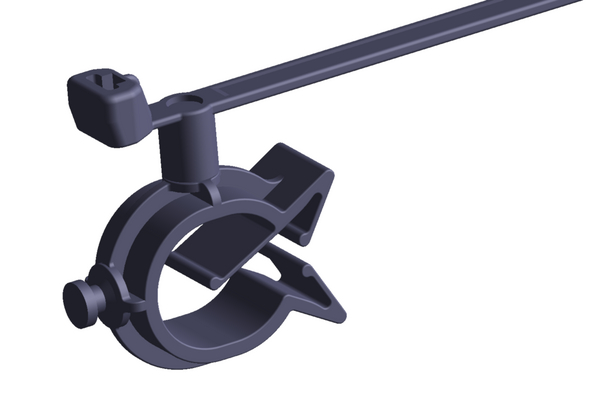

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 156-00134 | T50SVCOC10-14-PA66HS/PA66HIRHS-BK |  Details

    • simply clip onto a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Inside serrated cable tie
    • Ideally used in the Automotive Industry
    Show more
    Downloads CAD-Download Datasheet
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03040!
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SVCOC10-14-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Part No. T50SVCNT
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Tie Closure plastic pawl
    Type T50SVCOC10-14
    Attach to Diameter 0.4 ″ - 0.55 ″
    Attach to Ø 10.0 - 14.0
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 155mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ∅ D max. 0.55"
    ∅ D min. 0.4"
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026263465
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 1.398597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.211582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 131.568kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
