Pre-Insulated Terminals
Art.-No. 911-00547 | PRPK13-BU |  Details

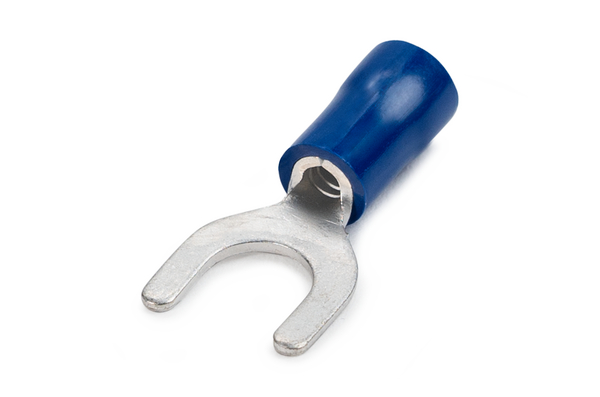

Spade/Fork single grip terminal, 2S series.

    Colour Blue (BU)
    Description TERMINAL PRE-PACK 2S5A 10
    PART DESCRIPTION PRPK13-BU
    Pack Cont. 10pcs.
    Part No. PRPK13
    Product Family Insulated Spade Terminals
    Product Group Pre-Insulated Terminals
    Type PRPK13
    Length (L) 21.0mm
    Length (L2) 6.5mm
    Max Current 27A
    Max Voltage 600V
    Stud ⌀ 5.3 mm
    Width (W) 7.9mm
    Wire Size Range (mm²) 1.17-3.24mm²
    GTIN-13 / EAN 6005242045509
