Pre-Insulated Terminals
Art.-No. 911-00720 | T3S6-YE |  Details

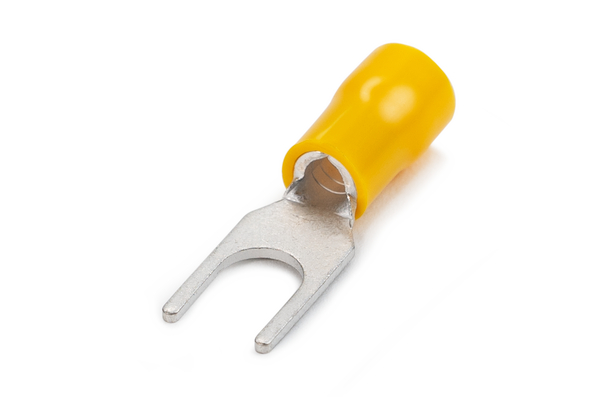

Spade/Fork single grip terminal, 3S series.

    • Inner copper tube (Twingrip)
    Colour Yellow (YE)
    Description TERMINAL T-G SPADE YELLOW 6.4mm
    PART DESCRIPTION T3S6-YE
    Pack Cont. 100pcs.
    Part No. T3S6
    Product Family Insulated Spade Terminals
    Product Group Pre-Insulated Terminals
    Type T3S6
    Length (L) 25.5mm
    Length (L2) 7.0mm
    Max Current 48A
    Max Voltage 600V
    Stud ⌀ 5.3 mm
    Width (W) 9.0mm
    Wire Size Range (mm²) 2.5-6.0mm²
    GTIN-13 / EAN 6005242017551
